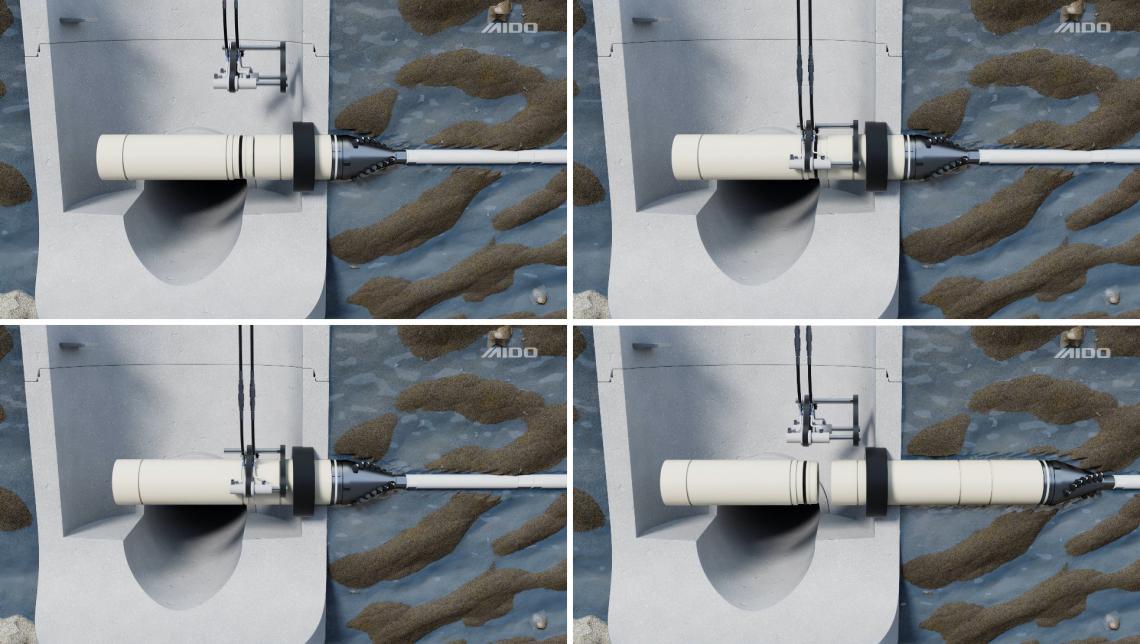

Small, compact device designed to connect Modular Tube modules. The small dimensions of the device allow for the construction of pipes from successive segments in limited spaces of typical DN1000, DN 1200, DN1500 sewer manholes.
The size of the device is selected depending on the size of modular pipes used: Ø110x10.0, Ø180x10.2, Ø225x13.8, Ø250x14.2, Ø280x15.9, Ø315x17.9, Ø400x22.7, Ø500x28.3.
The crimping tool requires hydraulic power. As a power supply, you can use a typical compact hydraulic power pack, or connect the device to the hydraulic system of another device with a hydraulic supply, such as a mini excavator, excavator, drilling rig, hydraulic jack or other, with operating parameters as in the table below containing the technical data of individual models of the compressors.
The small dimensions of the device allow for the construction of pipes from successive segments in limited spaces of typical DN1000, DN 1200, DN1500 sewer manholes.
TECHNICAL DATA:
| PARAMETER | unit | SRM 110 | SRM 180 | SRM 225 | SRM 250 | SRM 280 | SRM 315 |
|---|---|---|---|---|---|---|---|
| Application | - | for pipes Ø110 | for pipes Ø180 | for pipes Ø225 | for pipes Ø250 | for pipes Ø280 | for pipes Ø315 |
| Type of connection connectors | - | FF ISO 6,3 G1/4 M | FF ISO 6,3 G1/4 M | FF ISO 6,3 G1/4 M | FF ISO 6,3 G1/4 M | FF ISO 6,3 G1/4 M | FF ISO 6,3 G1/4 M |
| Length of connection hoses | m | 0,3 | 0,3 | 0,3 | 0,3 | 0,3 | 0,3 |
| Working pressure | bar | 160 | 160 | 160 | 160 | 160 | 160 |
| Oil flow | l/min | 2 | 2 | 2 | 2 | 2 | 2 |
| Mass | kg | 12 | 15,5 | 17,5 | 20 | 22,5 | 24 |
