Construction of a sewage system in Gdańsk-Jasień

Project:

Construction of a sanitary sewage system in Gdańsk - Jasień, Kartuska street

Modular pipes used: PP 180x10.2x600 / 700

Gravity drop: i = 1.5%

Installation length: 16.5 m

Sanitary sewerage construction, typical for the technology of precise horizontal drilling MIDO. The implementation required high precision of the set gravitational drop. The installation is located under a busy street, the exclusion of which would result in significant traffic difficulties, especially during rush hours. Using our Gravity Drilling technology, communication difficulties were limited to the partial occupation of one lane of traffic adjacent to the DN 1200 starting well.

jasien mapka ang
Construction site plan.
jasien przekroje ang
Installation scheme



jasien 04
Construction location. A busy street intersection.
jasien 05
Construction location. A busy street intersection.
jasien 06
The location of the starting well.
jasien 08
The location of the starting well.
jasien 09
The location of the starting well.
jasien 10
A starting well with an installed Gravity Drilling Rig.
jasien 15
Measurements of slope and depth during pilot drilling.
jasien 16

Measurements of slope and depth during pilot drilling.

jasien 11
Pilot drilling performed in the technical excavation.
jasien 12
Pilot drilling performed in the technical excavation.
jasien 13
Measurement of the ordinate of the performed pilot drilling.
jasien 14
Reaming a pilot drilling while simultaneously pulling in the first tube module.
jasien 17
Construction of an installation in a technical excavation with simultaneous hauling into the starting well.
jasien 01

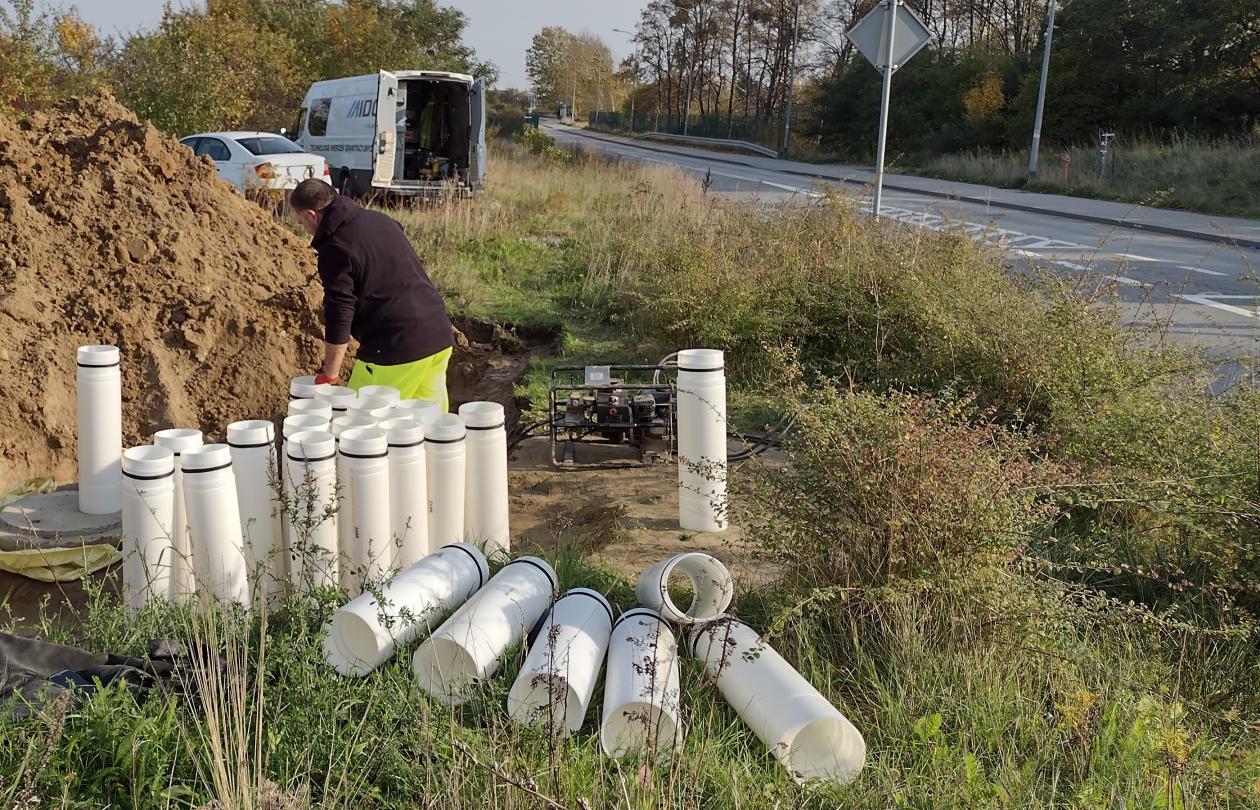

Successive pipe segments prepared at the technical excavation.
jasien 10
Pulling the installation into the starting well.
jasien 18
Pulling the installation into the starting well.
